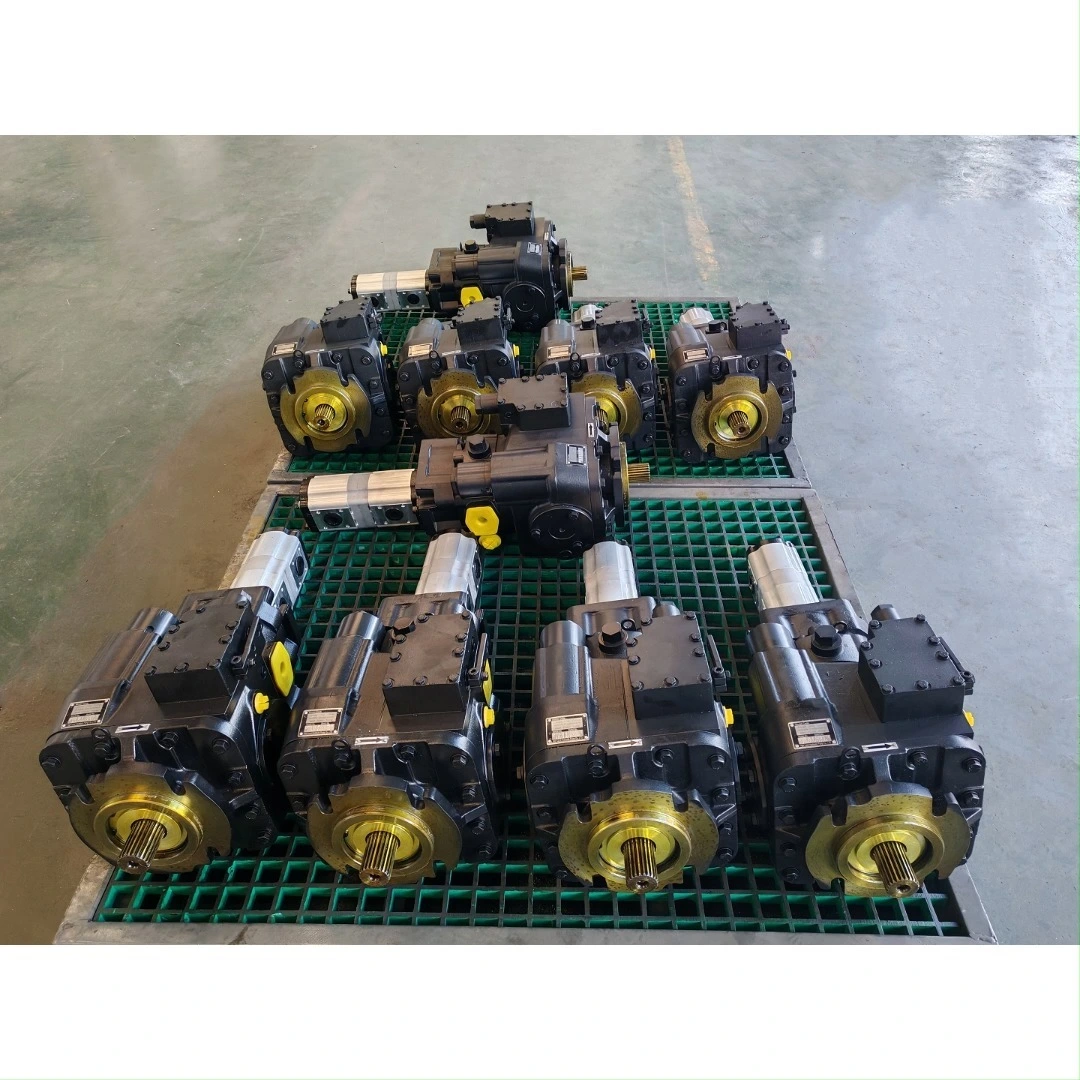

Load Sensing Agricultural Hydraulics For Maximum Efficiency 1

Load Sensing Agricultural Hydraulics For Maximum Efficiency

Load Sensing Agricultural Hydraulics For Maximum Efficiency

1. On-Demand Hydraulic Power Delivery: Load-sensing technology automatically adjusts flow and pressure based on actual working demand, ensuring hydraulic power is supplied only when needed and eliminating unnecessary energy consumption.

2. Improved Fuel and Energy Efficiency: By minimizing excess flow and pressure, load-sensing hydraulics significantly reduce engine load and fuel usage, helping agricultural machinery operate more efficiently during long working hours.

3. Precise and Responsive Control: The system provides accurate control of speed, force, and movement, allowing smooth and stable operation of lifting, steering, and auxiliary functions even under changing field conditions.

4. Reduced Heat Generation: Optimized flow management lowers internal energy losses, reducing heat buildup in the hydraulic system, which improves oil life, component reliability, and overall system stability.

5. Enhanced System Lifespan: Lower operating stress on pumps, valves, and hoses extends service life, reduces maintenance requirements, and improves long-term reliability for demanding agricultural applications.

MOQ:

1 set

Packaging Details:

Plywood case

Delivery Time:

15 DAYS FOR SMALL BATCH, 60 DAYS FOR MORE THAN 100 SETS

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Inquiry

Write a Review

Application

Agricultural Machinery,Walking Machinery

Characteristic

High efficiency,Smoother operation,Simple layout

Function

Hydraulic System Components

Pressure

42mpa

Brand

HIGHLAND

Operation Mode

Closed Circuit Hydraulic System

Working Medium

Hydraulic Oil

Material

Cast Iron

Load Sensing Agricultural Hydraulics For Maximum Efficiency

Highland Load sensing agricultural hydraulics provide efficient, responsive power

by matching flow and pressure to actual demand, maximizing efficiency while reducing fuel consumption and system wear.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Highland load-sensing hydraulic systems deliver efficient, demand-based power for agricultural machinery. By optimizing flow and pressure, they reduce fuel consumption, minimize heat, and ensure smooth, reliable operation in the field.

Product Features

Highland Load Sensing Agricultural Hydraulics for Maximum Efficiency are engineered to optimize hydraulic performance in modern farming machinery.
By continuously sensing hydraulic system load and adjusting output accordingly,Highland hydraulic systems deliver precise hydraulic power while minimizing energy loss.
Highland Load-sensing technology supports multiple hydraulic functions operating simultaneously without compromising performance or efficiency.

PRODUCT INTRODUCTION

Developed for modern agricultural equipment, load-sensing hydraulic solutions combine efficiency, precision, and durability. They provide responsive control and energy savings, supporting high-performance farming operations with reduced operating costs.

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
Torque	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
Power	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

HPV30(50)

PDF

HPV70(90)

PDF

HPV110(130)

PDF

detail displaY

Load Sensing Hydraulics

Agricultural Hydraulic Systems

Energy Efficient Hydraulics

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of variable piston pump and hydraulic motor, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.
