Closed loop hydraulic pump/hydraulic motor manufacturer & hydraulic solutions provider - Highland Hydraulic

Hydraulic System Axial Piston Pumps Motors

Hydraulic System Components Piston Pumps

Hydraulic System Components Piston Motors

Hydraulic System Components Axial Piston Pumps Motors

High Efficiency Performance: Axial piston pumps and motors are designed to deliver excellent volumetric efficiency, reducing energy loss and improving overall hydraulic system performance.
Stable Pressure & Flow Control: Precision-engineered piston structures ensure consistent pressure and smooth flow output, supporting reliable operation of complex hydraulic circuits.
Durable Construction: Manufactured with high-strength materials and precision machining, Highland hydraulic components offer long service life under heavy loads and harsh working conditions.
Wide Application Compatibility: Suitable for construction machinery, agricultural equipment, industrial hydraulic systems, and mobile hydraulics requiring high power density.
Flexible System Integration: Compact designs and standardized mounting options allow easy integration into new hydraulic systems or replacement in existing equipment.

MOQ:

1 set

Packaging Details:

Plywood case

Delivery Time:

15 DAYS FOR SMALL BATCH, 60 DAYS FOR MORE THAN 100 SETS

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Inquiry

Write a Review

Application

Agricultural Machinery,Walking Machinery

Characteristic

High efficiency,Smoother operation,Simple layout

Function

Hydraulic System Components

Pressure

42mpa

Brand

HIGHLAND

Operation Mode

Closed Circuit Hydraulic System

Working Medium

Hydraulic Oil

Material

Cast Iron

Hydraulic System Components Axial Piston Pumps Motors

Highland axial piston pumps and motors as key hydraulic system components deliver high efficiency,

stable pressure, and reliable power transmission for mobile and industrial hydraulic applications.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Highland axial piston pumps and motors provide efficient and reliable hydraulic power as essential system components. Featuring high pressure capability, durable construction, and precise flow control, they support stable operation across mobile and industrial hydraulic systems.

Product Features

Highland axial piston pumps and motors play a critical role as core components in modern hydraulic systems. Designed for high efficiency and precise control, they deliver stable flow, reliable pressure, and strong torque output for a wide range of applications.
Highland advanced piston design minimizes internal leakage while maximizing power density, making them ideal for demanding environments such as construction machinery, agricultural equipment, and industrial hydraulic systems.
Built with durable materials and precision components, axial piston pumps and motors ensure long service life and consistent performance under continuous operation.

PRODUCT INTRODUCTION

As key hydraulic system components, axial piston pumps and motors deliver high efficiency, stable pressure, and dependable performance. Designed for demanding operating conditions, they are widely used in mobile hydraulics, agricultural machinery, and industrial equipment requiring reliable power transmission.

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
Torque	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
Power	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

HPV30(50)

PDF

HPV70(90)

PDF

HPV110(130)

PDF

detail displaY

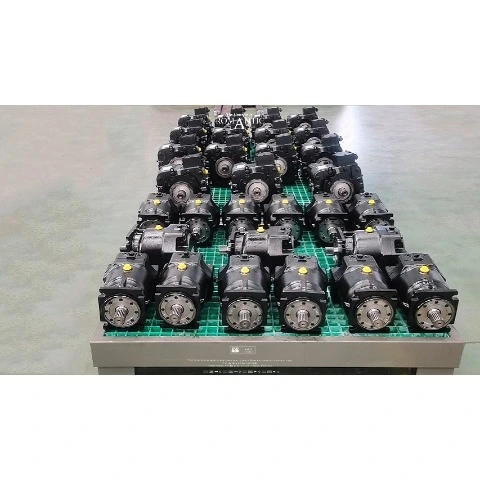

Axial Piston Pumps

Axial Piston Motors

Hydraulic System Components

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of variable piston pump and hydraulic motor, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Portable hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.

Get in touch with us

just leave your email or phone number in the contact form so we can send you a free quote for our wide range of designs
