Hydraulic Component Performance Test Rig Full Range Pressure, Flow & Efficiency Testing
Hydraulic Component Comprehensive Performance Test Bench is an all-in-one testing system specifically designed for hydraulic pumps, motors, valves, and cylinders. It integrates core testing functions including pressure, flow rate, efficiency, and durability evaluations.
Featuring a modular structure with high-precision sensors (pressure measurement accuracy ±0.1%FS, flow ±0.5%FS) and intelligent control system, the bench supports customizable pressure ranges of 0-50MPa and can simulate complex working conditions such as pressure shocks and pulsations.
Operated via a 7-inch touchscreen with programmable test sequences, it automatically generates inspection reports compliant with ISO 4409/GB-T 7936 standards. The built-in fault signature database for common pump and valve failures significantly improves maintenance quality inspection efficiency.
Product description
Multi-functional Testing: Measures pressure, flow, efficiency for pumps, motors, valves & cylinders
High Accuracy: ±0.1%FS pressure, ±0.5%FS flow, ±0.5℃ temperature
Endurance Test: 1000-hour continuous operation with real-world shock/pulsation simulation
Products Advantages
Our hydraulic test bench provides accurate and reliable testing for hydraulic components, ensuring optimal performance and safety. It offers customizable pressure settings, fast testing times, and easy operation for increased productivity.
Product Specifications
Our experts can help you customize the perfect hydraulic testing equipment for you.
| Pressure | 35mpa、42mpa | |
| Flow Rate | 380L/min 、450L/min、500L/min | |
| Brand | HIGHLAND | |
| Power | 75kw、90kw、110kw、160kw、200kw、250kw、315kw | |
| Test Element | Close pump test, Open pump, Low speed motor, Valve set, Cylinder | |
| Power Drive Mode | Electromotor, Diesel engine drive, Hydraulic mortor, Power recovery | |
| Speed Range | 1000r/min、0-1500r/min、0-2500r/min、0-3500r/min | |
| Display Mode | Locale(Withour Computer)、Computer (long-distance) | |
| Working Medium | Hydraulic oil | |
| Oil Tank Cubage | 1300L、2000L | |
About Us
PRODUCT APPLICATION
Pump/Motor Factory Acceptance: Verify flow characteristics & efficiency curves under rated pressure
Reconditioned Parts Evaluation: Diagnose key metrics like leakage & response time of repaired valves
Cylinder Endurance Test: Simulate 2 million strokes to assess seal wear
System Compatibility Verification: Test dynamic performance matching under simulated conditions
Product dETAILS

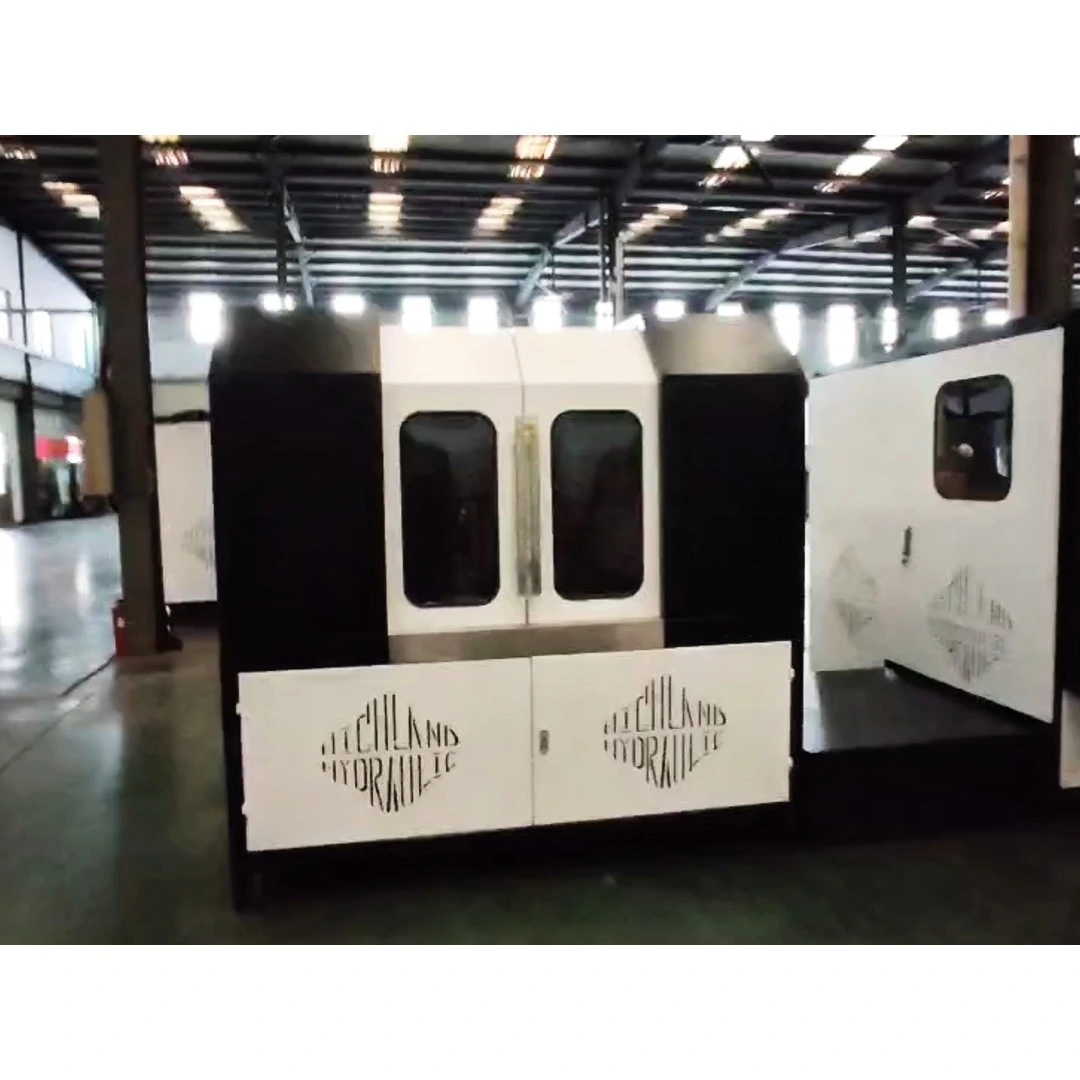

Precision engineered with durable construction, our Hydraulic test bench delivers accurate and reliable testing for a wide range of hydraulic systems. Designed for seamless integration into your workflow, it offers advanced performance and efficiency.
Product FEATURES
Our Universal Hydraulic Test Bench is a highly integrated professional testing equipment designed for comprehensive performance validation of hydraulic components. Equipped with military-grade sensors and intelligent control system, it delivers precise measurement of key parameters including pressure, flow rate and power, with pressure measurement accuracy up to ±0.1%FS and flow measurement accuracy of ±0.5%FS.
Product DISPLAYZOOM IN FOR BETTER DETAIL
Product SPECIFICATIONS
Our experts can help you find the perfect hydraulic testing equipment for your home.
FAQ
APPLICATION SCENARIOS
