HPV Series Minimizes Internal Leakage for Efficiency

Anti-stick coatings on control spools improve fine control at micro-strokes.

Robust port-plate support minimizes face distortion at high pressure.

Case-drain temperature management extends elastomer lifespan.

Smooth displacement transition prevents actuator overshoot/undershoot.

Compact mass distribution reduces cantilevered loads on mounts.

MOQ:

1 set

Packaging Details:

Plywood case

Delivery Time:

30-60 work days

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Certificate:

CE ISO9001

Inquiry

Write a Review

Hydraulic Pump Mode

HPV90

Product Name

Hydraulic Transmission

Application

Agricultural Machinery,Walking Machinery

Function

Power components of hydraulic system

Pressure

42mpa

Brand

HIGHLAND

Operation Mode

Closed Circuit Hydraulic System

Displacement

90ml/r

Working Medium

Hydraulic Oil

Warranty

1 Year

Material

Cast Iron

Explosive HPV110 Variable Displacement Pump Manufacturer

Designed for hydraulic systems in harvesters and agricultural machinery

Suitable for static hydraulic drive of lifting, snow pressing, and construction machinery

Very suitable for agricultural machinery drive systems that require hydrostatic hydraulic pumps

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

The cast housing of HPV pumps is designed to absorb high stress and resist deformation. This provides mechanical stability, ensuring reliable function under continuous heavy-duty cycles.

Product Features

Shoe pocket volume tuned for film stability across viscosity classes.

Cylinder-block balance holes control lifting forces at port crossover.

High-stiffness shaft resists bending from external belt tensions.

Low-pulsation output benefits servo and proportional valve circuits.

Service kits and interchangeable subassemblies reduce downtime.

Product INTRODUCTION

Highland axial hydraulic pump and hydraulic motor assembly and hydraulic system with high quality, high-performance parameters. Hydraulic pump is the variable one that is with charge pump, its control way of variable displacement hydraulic pump can be manual servo or hydraulic servo, electric proportional servo controls. And can simply control speed, direction and power of the output shaft of hydraulic motor.

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
Torque	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
Power	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

Download FIle

PDF

Download FIle

HPV30(50)

PDF

HPV70（90）

PDF

HPV110(130)

PDF

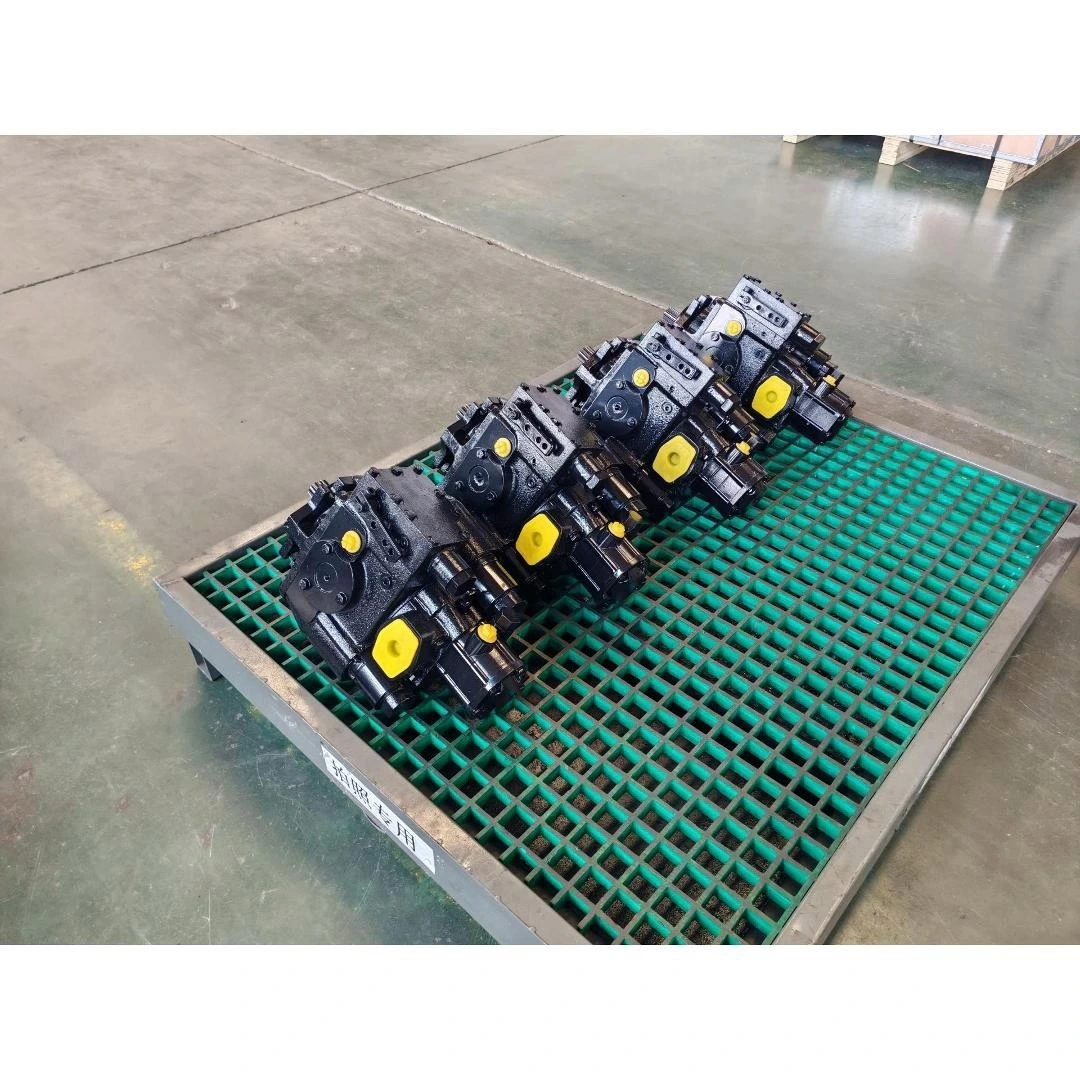

detail displaY

HPV110 Pump

Pump Manufacturer

Hydraulic Pump

HPV110 Hydraulic Pump

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

About Us

Shandong Highland Hydraulic Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with nearly 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.

Packing & Delivery

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.
