HPV Pumps Offer Stable Output Under Fluctuating Loads
HPV axial piston pumps are engineered with heavy-duty thrust bearings for high axial loads.
Optimized rotating group alignment minimizes internal leakage paths.
Special heat-treated drive shafts resist torsional fatigue in cyclic operations.
Self-centering slipper pads ensure uniform pressure distribution during operation.
Integrated suction strainers reduce risk of particle ingestion and component wear.
Explosive HPV70 Variable Displacement Pump Manufacturer
our advantage
Product Description
HPV series pumps are designed to be compatible with a wide range of hydraulic fluids, including environmentally friendly formulations, supporting compliance with modern sustainability standards.
Product Features
HPV pumps use finite-element-optimized housings for enhanced structural rigidity.
High-flow valve plates reduce throttling losses, improving efficiency at peak outputs.
Multi-point lubrication grooves extend bearing life under continuous-duty operations.
Adaptive piston shoe coatings reduce scuffing during boundary lubrication conditions.
Compact length-to-power ratio supports machinery where installation space is limited.
Product INTRODUCTION
Highland axial hydraulic pump and hydraulic motor assembly and hydraulic system with high quality, high-performance parameters. Hydraulic pump is the variable one that is with charge pump, its control way of variable displacement hydraulic pump can be manual servo or hydraulic servo, electric proportional servo controls. And can simply control speed, direction and power of the output shaft of hydraulic motor.
PRODUCT SPECIFICATIONS
|
Rated |
|
30 |
50 |
70 |
90 |
110 |
130 |
|
|
Maximum displacement |
ml/r |
30 |
50 |
70 |
90 |
110 |
130 |
|
|
Speed |
Maximum continuous operating speed |
r/min |
3500 |
3500 |
3200 |
3000 |
2900 |
2700 |
|
Rated speed |
r/min |
2500 |
||||||
|
Minimum continuous operating speed |
r/min |
500 |
||||||
|
Pressure |
Rated working pressure |
Mpa |
35 |
|||||
|
Maximum working pressure (instantaneous) |
Mpa |
42 |
||||||
|
Continuous working pressure ( Δ P) |
Mpa |
30 |
||||||
|
Allowable shell pressure (absolute) |
Mpa |
Constant0.25，Peak value0.5 |
||||||
|
Torque |
Continuous output torque |
Nm |
162.3 |
252.3 |
342.6 |
432.9 |
535.3 |
632.4 |
|
Maximum output torque |
Nm |
227 |
353 |
480 |
606 |
749 |
885 |
|
|
Power |
Continuous Power |
KW |
41 |
72 |
98 |
128 |
137 |
162 |
|
Maximum power |
KW |
57 |
87 |
105 |
138 |
159 |
188 |
|
|
Temperature |
Allowable temperature of shell |
℃ |
80 |
|||||
|
Maximum operating temperature of fuel tank |
℃ |
70 |
||||||
|
Angle |
Maximum inclination angle of the inclined plate |
° |
± 18 ° |
|||||
|
Weight |
HPV series hydraulic pump Hydraulic oil drainage |
kg |
45 |
46 |
63 |
64 |
87 |
87.5 |

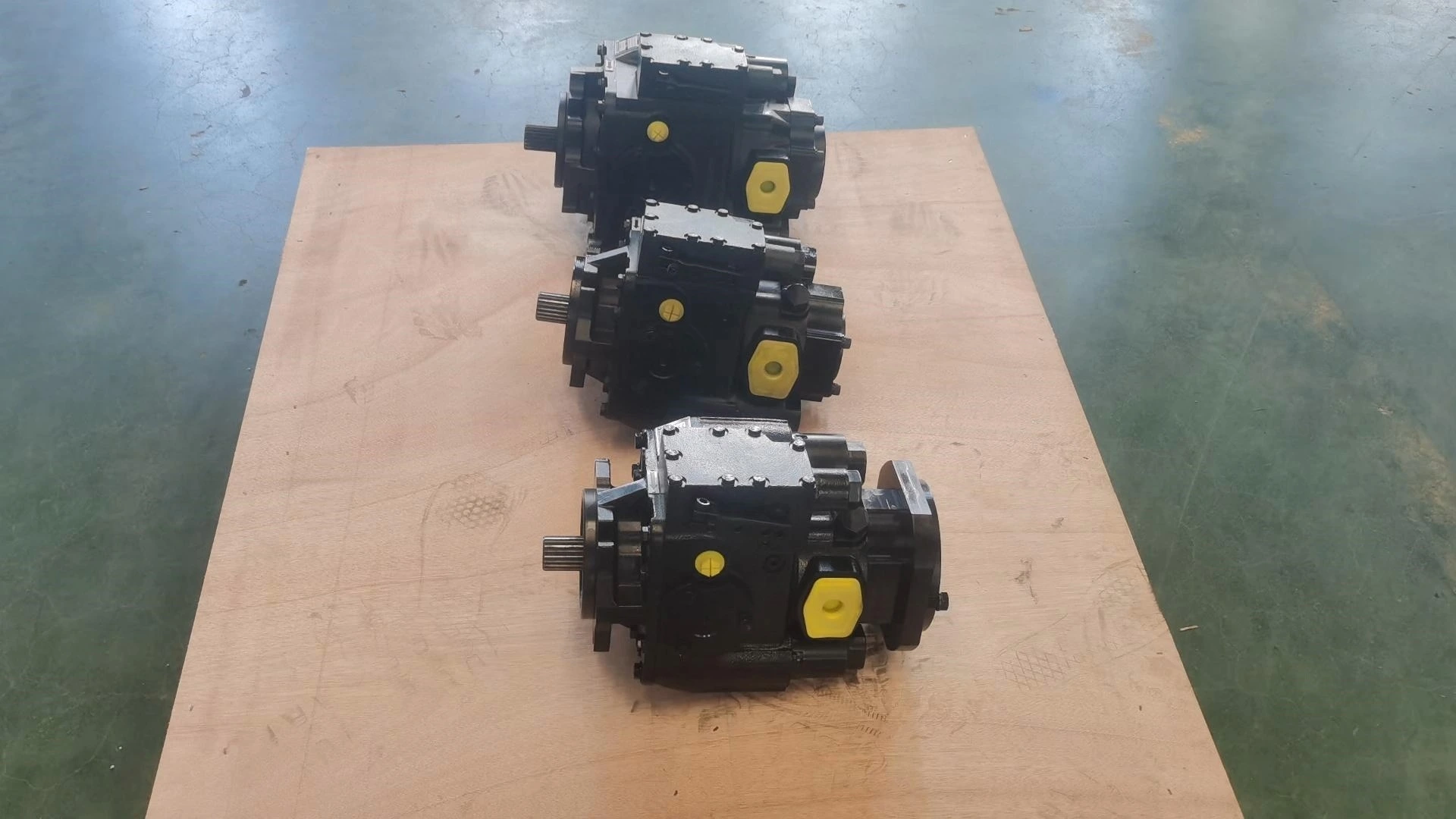

detail displaY
Product Application
About Us
Shandong Highland Hydraulic Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with nearly 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.
Packing & Delivery
To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.
