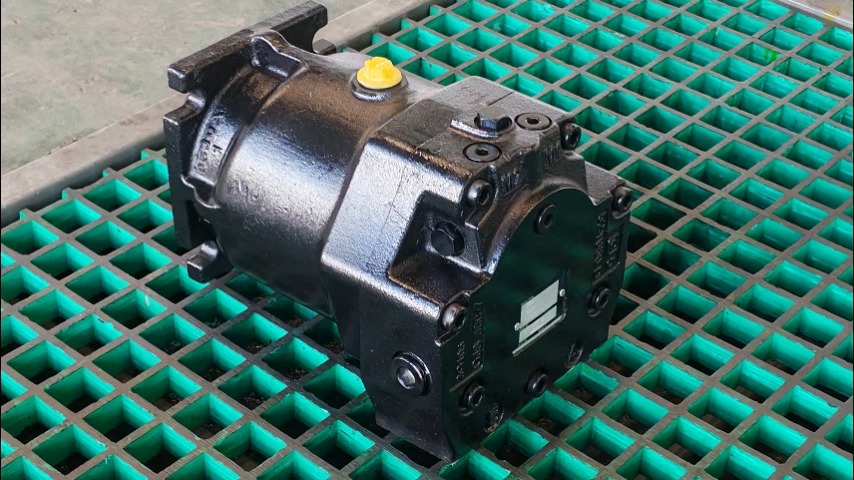

HMF90 Hydraulic Motors for Concrete Mixer Trucks

Highland Hydraulic supplies HMF90 fixed displacement axial piston motors designed for compatible closed-circuit hydraulic drive systems, including concrete mixer truck drum drives. Built for demanding working conditions, the HMF90 helps convert hydraulic power into the rotational torque required for continuous drum operation.

Stable Torque for Concrete Mixing

Fixed Displacement Axial Piston Design

High-Pressure Performance

Highland's published HMF series specifications list the following values for the HMF90 configuration:

• Displacement: 90 ml/rev

• Rated working pressure: 35 MPa

• Maximum instantaneous pressure: 38 MPa

Actual performance depends on pressure differential, rotational speed, hydraulic oil conditions, and system configuration. Confirm the exact specifications for your required model before installation.

Contact Highland Hydraulic for HMF90 technical drawings, wholesale quotations, and concrete mixer truck hydraulic motor solutions.
