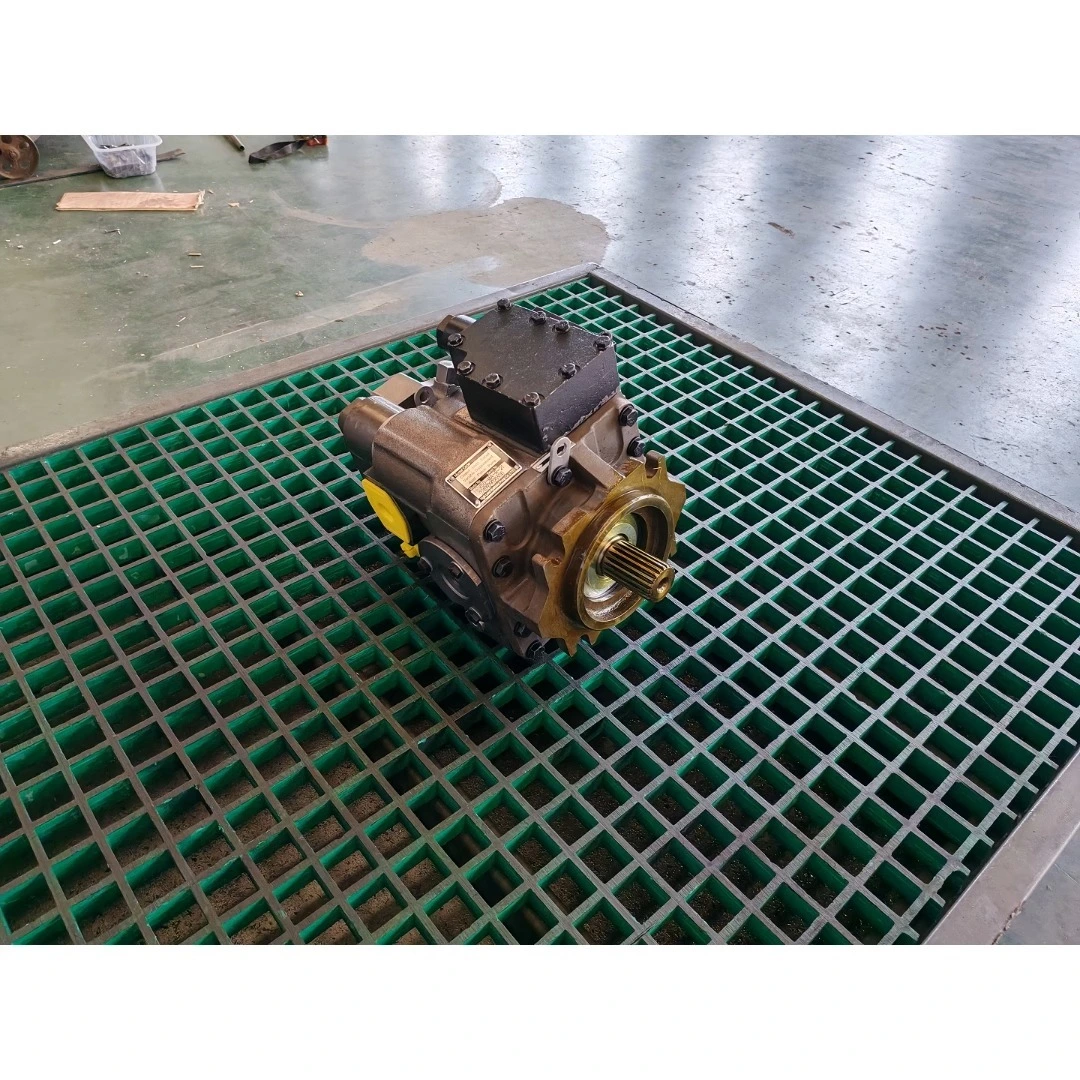

Hydraulic Pump for Agricultural Trailers

High-Performance Hydraulic Pump for Tractors

Hydraulic Pump for Agricultural Implements

High Pressure HPV Pump for Grapevine and Orchard Narrow-Track Tractors

1. High-Pressure Endurance: Built to handle peak loads exceeding 42 MPa.

2. Efficient Flow Distribution: Valve plate designed for low-pressure loss circulation.

3. Minimal Leakage: High-precision lapping ensures sealing integrity.

4. Easy Calibration: External control interface allows quick adjustment.

5. Reduced Maintenance Cost: Long-lasting materials reduce replacement frequency.

MOQ:

1 set

Packaging Details:

Plywood case

Delivery Time:

15 DAYS FOR SMALL BATCH, 60 DAYS FOR MORE THAN 100 SETS

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Inquiry

Write a Review

Hydraulic Pump Mode

HPV70

Application

Agricultural Machinery,Walking Machinery

Characteristic

High efficiency,Smoother operation,Simple layout

Function

Hydraulic System Components

Pressure

42mpa

Brand

HIGHLAND

Speed

3200r/min

Operation Mode

Closed Circuit Hydraulic System

Displacement

70ml/r

Working Medium

Hydraulic Oil

Warranty

1 Year

Material

Cast Iron

HPV70 Hydraulic Plunger Pumps For Forage Harvesters

Highland HPV90 hydraulic plunger pumps provide efficient, high-pressure hydraulic power

for forage harvesters, ensuring reliable operation and enhanced productivity in agricultural systems.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

The internal design of HPV pumps provides high resistance to fluid contamination, extending the life of the entire hydraulic system.

Product Features

1. Dynamic Performance: Swift pressure response supports rapid machine actuation.
2. Low Heat Generation: Efficient fluid path reduces thermal stress.
3. Durable Bearings: Large-capacity bearings enhance mechanical strength.
4. Anti-Corrosion Coating: Protects against harsh environmental exposure.
5. Modular Build: Easy configuration for diverse agricultural requirements.

PRODUCT INTRODUCTION

Engineered for closed-loop hydraulic systems, Highland HPV90 hydraulic plunger pump provides high efficiency, stable performance, and long-term reliability. It is widely applied in forage harvesters and other agricultural machines to ensure smooth power delivery and optimal hydraulic system control.

Silage Harvester Hydraulic Plunger Pumps With Volumetric Efficiency

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
Torque	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
Power	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

HPV30(50)

PDF

HPV70(90)

PDF

HPV110(130)

PDF

detail displaY

Forage Harvester Plunger Pumps

HPV90 Hydraulic Pumps

Hydraulic Plunger Pumps

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of variable piston pump and hydraulic motor, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.
