High Pressure Axial Piston Pumps Hydraulic Power Source

High Pressure Piston Pumps Hydraulic Power Source

High Pressure Axial Piston Pumps Hydraulic Power Source

High Pressure Capability: Designed to handle working pressures up to 420 bar, ensuring powerful and consistent performance.
Efficient Energy Transfer: Advanced swashplate design reduces energy loss and maximizes hydraulic efficiency.
Robust Construction: Precision-machined components and high-strength materials guarantee durability in harsh environments.
Flexible Mounting Options: Compatible with a variety of hydraulic systems and easy to integrate into new or existing equipment.
Smooth Operation: Low-noise design and stable flow provide precise control for sensitive hydraulic applications.

MOQ:

1 set

Packaging Details:

Plywood case

Delivery Time:

15 DAYS FOR SMALL BATCH, 60 DAYS FOR MORE THAN 100 SETS

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Inquiry

Write a Review

Application

Agricultural Machinery,Walking Machinery

Characteristic

High efficiency,Smoother operation,Simple layout

Function

Hydraulic System Components

Pressure

42mpa

Brand

HIGHLAND

Operation Mode

Closed Circuit Hydraulic System

Working Medium

Hydraulic Oil

Material

Cast Iron

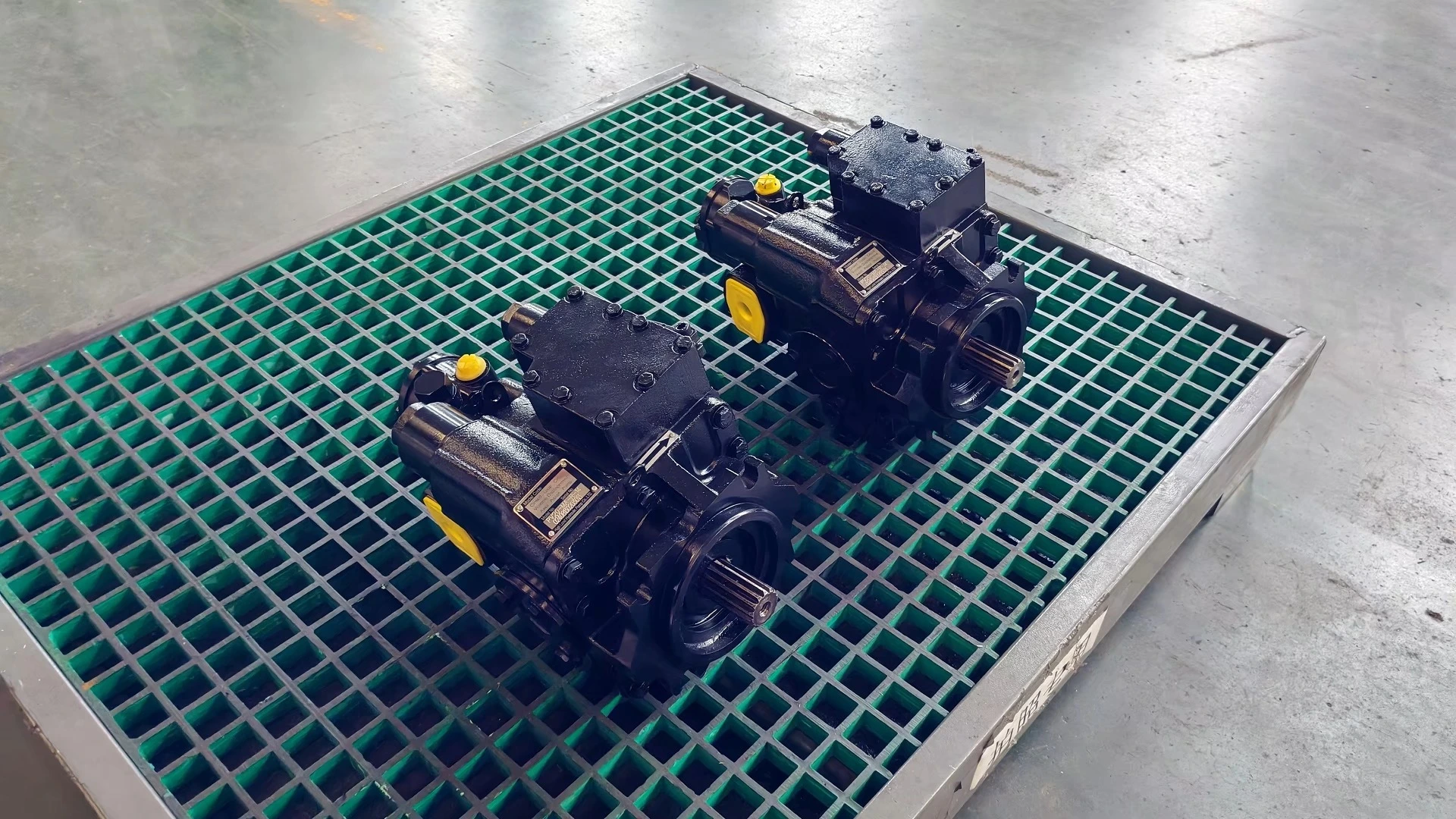

High Pressure Axial Piston Pumps Hydraulic Power Source

Highland durable high-pressure axial piston pumps deliver efficient hydraulic power for industrial, agricultural, and construction machinery.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Engineered for heavy-duty applications, Highland axial piston pumps offer up to 420 bar working pressure, high efficiency, and long service life, making them the ideal hydraulic power source for demanding systems.

Product Features

Highland high-pressure axial piston pumps provide a dependable hydraulic power source for a wide range of applications, including construction equipment, agricultural machinery, and industrial hydraulic systems.
Engineered for pressures up to 420 bar, Highland axial piston pumps feature an advanced variable displacement design for energy efficiency and precise control.
Easy integration and multiple mounting options make them ideal for OEMs and retrofit projects seeking consistent, high-performance hydraulic power.

Product INTRODUCTION

Highland axial piston pumps are the perfect high-pressure hydraulic power solution. With advanced swashplate technology and robust construction, they ensure efficient power transmission, smooth operation, and exceptional durability for industrial and mobile equipment.

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
Torque	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
Power	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

HPV30(50)

PDF

HPV70(90)

PDF

HPV110(130)

PDF

detail displaY

Axial Piston Pumps

Hydraulic Power Source

High Pressure Piston Pumps

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of variable piston pump and hydraulic motor, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.
