Closed loop hydraulic pump/hydraulic motor manufacturer & hydraulic solutions provider - Highland Hydraulic

High Power Hydraulic Systems For Silage Harvester

High Power Hydraulic Systems For Silage Harvester

High Power Output for Demanding Harvesting Tasks: Engineered to deliver strong and continuous hydraulic power, supporting cutting, feeding, chopping, and propulsion functions required in modern silage harvesting operations.
Stable Performance Under Heavy Load: Optimized hydraulic design ensures consistent pressure and flow even during peak load conditions, maintaining smooth operation and reliable system response.
High Efficiency Energy Utilization: Precision hydraulic components reduce internal losses, improving overall system efficiency and helping lower fuel consumption during extended harvesting cycles.
Robust Design for Harsh Field Environments: Built with high-strength materials, wear-resistant components, and advanced sealing systems to withstand dust, vibration, moisture, and long working hours in agricultural fields.
Reduced Maintenance and Extended Service Life: Durable construction and optimized lubrication reduce component wear, extend service intervals, and minimize downtime during critical harvesting seasons.

MOQ:

1 set

Packaging Details:

Plywood case

Delivery Time:

15 DAYS FOR SMALL BATCH, 60 DAYS FOR MORE THAN 100 SETS

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Inquiry

Write a Review

Application

Agricultural Machinery,Walking Machinery

Characteristic

High efficiency,Smoother operation,Simple layout

Function

Hydraulic System Components

Pressure

42mpa

Brand

HIGHLAND

Operation Mode

Closed Circuit Hydraulic System

Working Medium

Hydraulic Oil

Material

Cast Iron

High Power Hydraulic Systems For Silage Harvester

Highland High power hydraulic systems providing reliable, efficient performance

for silage harvesters operating under heavy-duty agricultural conditions.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Highland high power hydraulic system delivers strong, stable output for silage harvesters. Designed for efficiency and durability, it supports continuous heavy-duty operation with reduced maintenance and reliable performance.

Product Features

Highland High power hydraulic systems are essential for silage harvesters that operate continuously under heavy loads and demanding field conditions.
Highland hydraulic systems are designed to deliver strong hydraulic output for cutting units, feeding mechanisms, propulsion drives, and auxiliary functions.
Built to withstand dust, vibration, and long working hours, hydraulic system features durable materials and advanced sealing technology to protect against wear and contamination.

PRODUCT INTRODUCTION

Highland High power hydraulic systems play a critical role in silage harvesters, providing the energy required for cutting, feeding, and propulsion functions. Engineered for efficiency, durability, and stable output, these systems ensure reliable operation in demanding agricultural environments.

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
Torque	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
Power	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

HPV30(50)

PDF

HPV70(90)

PDF

HPV110(130)

PDF

detail displaY

Hydraulic Power

High Power Hydraulic System

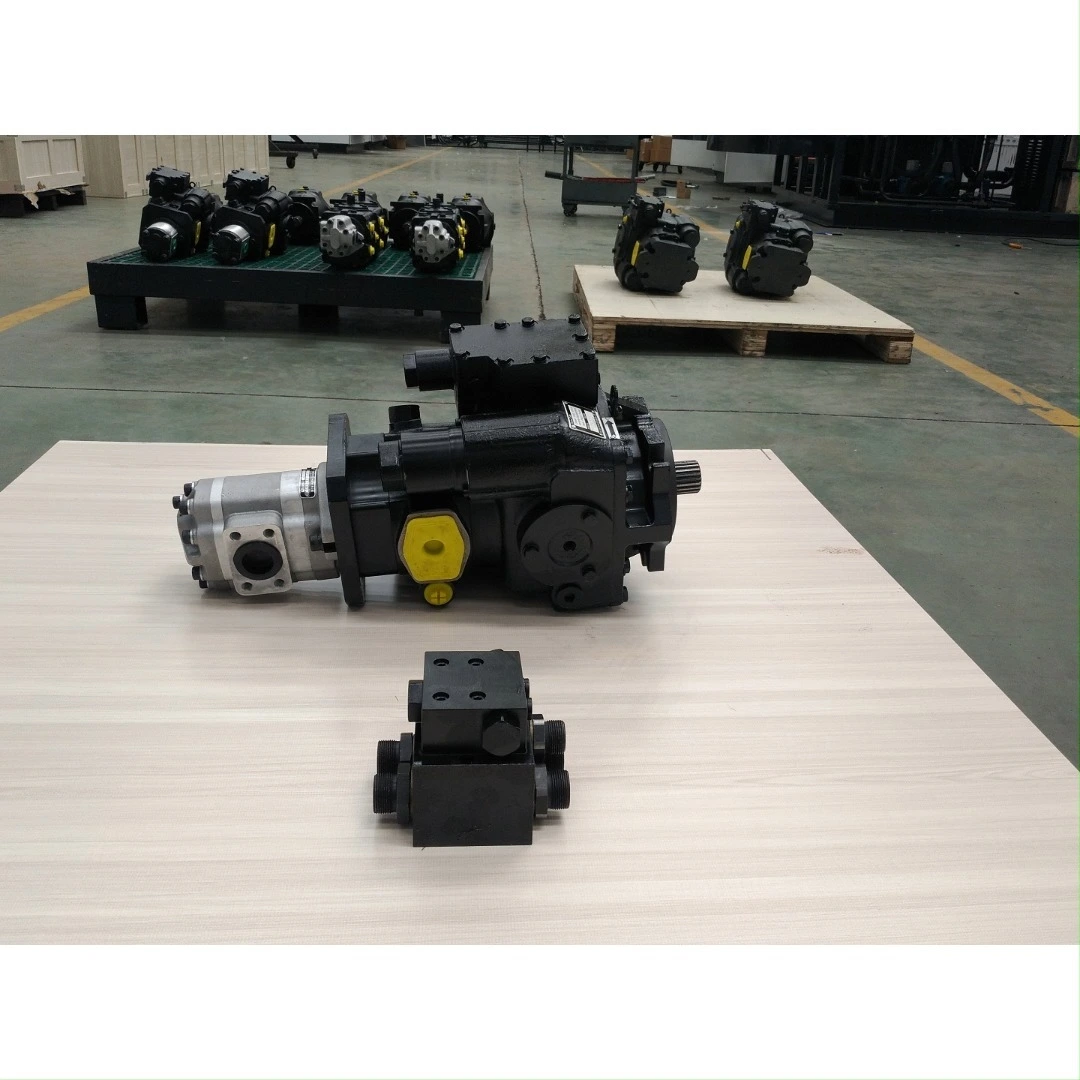

Silage Harvester Hydraulics

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of variable piston pump and hydraulic motor, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Portable hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.
