Factory Price Closed Circuit Hydraulic Pumps Motors Wholesale

Closed Circuit Hydraulic Pumps Motors Wholesale

Factory Price Closed Circuit Hydraulic Pumps Motors

Factory Price Closed Circuit Hydraulic Pumps Motors Wholesale

High Efficiency Design: Hydraulic pumps and motors are engineered to reduce energy losses and maximize hydraulic power transfer for demanding applications.
Durable Construction: Built with high strength materials to ensure long service life, even in heavy-duty and continuous operations.
Compact and Versatile: Space-saving design with flexibility for installation in mobile, agricultural, and industrial hydraulic systems.
Smooth Closed Circuit Operation: Ensures stable power transmission, reduced heat generation, and consistent performance under varying loads.
Cost-Effective Wholesale Supply: Factory direct pricing with reliable bulk supply, providing excellent value for OEMs and equipment manufacturers.

MOQ:

1 set

Packaging Details:

Plywood case

Delivery Time:

15 DAYS FOR SMALL BATCH, 60 DAYS FOR MORE THAN 100 SETS

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Inquiry

Write a Review

Application

Agricultural Machinery,Walking Machinery

Characteristic

High efficiency,Smoother operation,Simple layout

Function

Hydraulic System Components

Pressure

42mpa

Brand

HIGHLAND

Operation Mode

Closed Circuit Hydraulic System

Working Medium

Hydraulic Oil

Material

Cast Iron

Factory Price Closed Circuit Hydraulic Pumps Motors Wholesale

Highland factory direct closed circuit hydraulic pumps and motors wholesale,

designed for efficiency, durability, and reliable power transmission in mobile and industrial machinery.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Highland factory wholesale closed circuit hydraulic pumps and motors offer reliable power transmission with high efficiency and long service life. Suitable for heavy-duty mobile and industrial machinery, they provide smooth closed-loop performance and compact installation flexibility. With factory direct pricing and bulk supply options, they are the ideal choice for OEMs and hydraulic equipment manufacturers.

Product Features

Highland factory price closed circuit hydraulic pumps and motors are designed to deliver exceptional performance and cost efficiency for a wide range of machinery. Engineered with high efficiency and durability in mind, they ensure smooth closed-loop operation, stable power transmission, and reliable control.
Highland hydraulic pumps and motors are suitable for construction machinery, agricultural harvesters, mobile equipment, and industrial systems requiring high pressure and precise hydraulic performance.
With robust materials, compact structure, and versatile configurations, they meet international standards and are trusted by OEMs worldwide.

Product INTRODUCTION

Highland hydraulic as a trusted hydraulic supplier, we specialize in providing factory direct closed circuit hydraulic pumps and motors at competitive wholesale prices. Designed for efficiency, durability, and reliable performance, our products are widely used in construction, agriculture, and industrial applications. With strong engineering support and global supply capability, we help manufacturers and distributors achieve cost savings while maintaining high-quality hydraulic systems.

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
Torque	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
Power	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

HPV30(50)

PDF

HPV70(90)

PDF

HPV110(130)

PDF

detail displaY

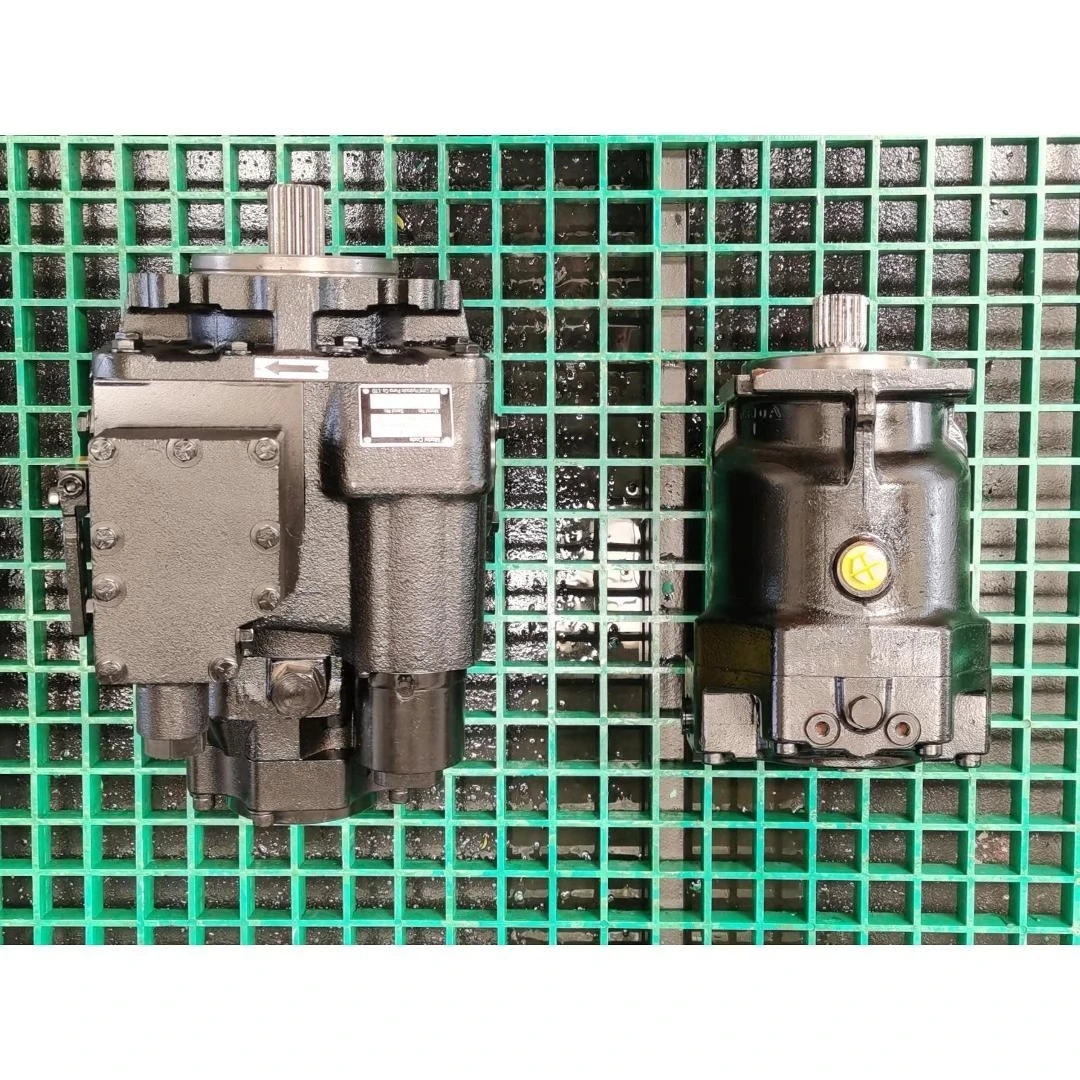

Closed Circuit Hydraulic Pumps Motors

Hydraulic Pumps Motors Wholesale

Factory Price Hydraulic Pumps Motors

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of variable piston pump and hydraulic motor, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.
