Energy Saving HPV90 Axial Piston Pumps For Hydrostatic Transmissions

HPV90 Axial Piston Pumps For Hydrostatic Transmissions

Axial Piston Pumps For Hydrostatic Transmissions

Piston Pumps For Hydrostatic Transmissions

Hydraulic Axial Piston Pumps For Hydrostatic Transmissions

Energy Saving HPV90 Axial Piston Pumps For Hydrostatic Transmissions

Energy Saving Design: Optimized hydraulic control reduces energy consumption, improving efficiency and lowering costs.
High Pressure Capability: Supports hydrostatic transmissions with stable, powerful output for demanding applications.
Durable Construction: Built from high quality, wear resistant materials for extended service life in harsh environments.
Compact and Lightweight: Streamlined structure ensures easy installation and space saving integration into mobile machinery.
Low Maintenance: Simplified design reduces downtime and maintenance costs, ensuring reliable long term operation.

MOQ:

1 set

Packaging Details:

Plywood case

Delivery Time:

30-60 work days

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Certificate:

CE ISO9001

Inquiry

Write a Review

Hydraulic Pump Mode

HPV90

Product Name

Hydraulic Transmission

Application

Agricultural Machinery,Walking Machinery

Function

Power components of hydraulic system

Pressure

42mpa

Brand

HIGHLAND

Operation Mode

Closed Circuit Hydraulic System

Working Medium

Hydraulic Oil

Warranty

1 Year

Material

Cast Iron

Energy Saving HPV90 Axial Piston Pumps

For Hydrostatic Transmissions

HPV90 axial piston pumps provide energy-efficient, high-pressure hydraulic power

for hydrostatic transmissions, ensuring durability, compact design, and low maintenance for mobile machinery.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Highland HPV90 axial piston pumps offer high efficiency, energy savings, and reliable performance for hydrostatic transmissions. With a durable, compact design and low maintenance needs, they are ideal for mobile hydraulic systems.

Product Features

Highland HPV90 axial piston pump is engineered for high-performance hydrostatic transmission systems, delivering reliable power while minimizing energy consumption.
Designed with variable displacement technology, it optimizes hydraulic flow for improved system efficiency and fuel savings. With a robust construction using premium materials, HPV90 axial piston pump withstands demanding operating conditions in mobile machinery, agricultural equipment, and construction vehicles.
Its compact, lightweight design allows easy integration into closed-loop hydraulic circuits, while simplified maintenance reduces downtime.

Product INTRODUCTION

Highland supply HPV90 axial piston pumps designed for energy-efficient hydrostatic transmissions. HPV90 axial piston pumps deliver stable, high-pressure output, long-lasting durability, and easy integration into various mobile machinery applications.

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
Torque	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
Power	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

HPV30(50)

PDF

HPV70(90)

PDF

HPV110(130)

PDF

detail displaY

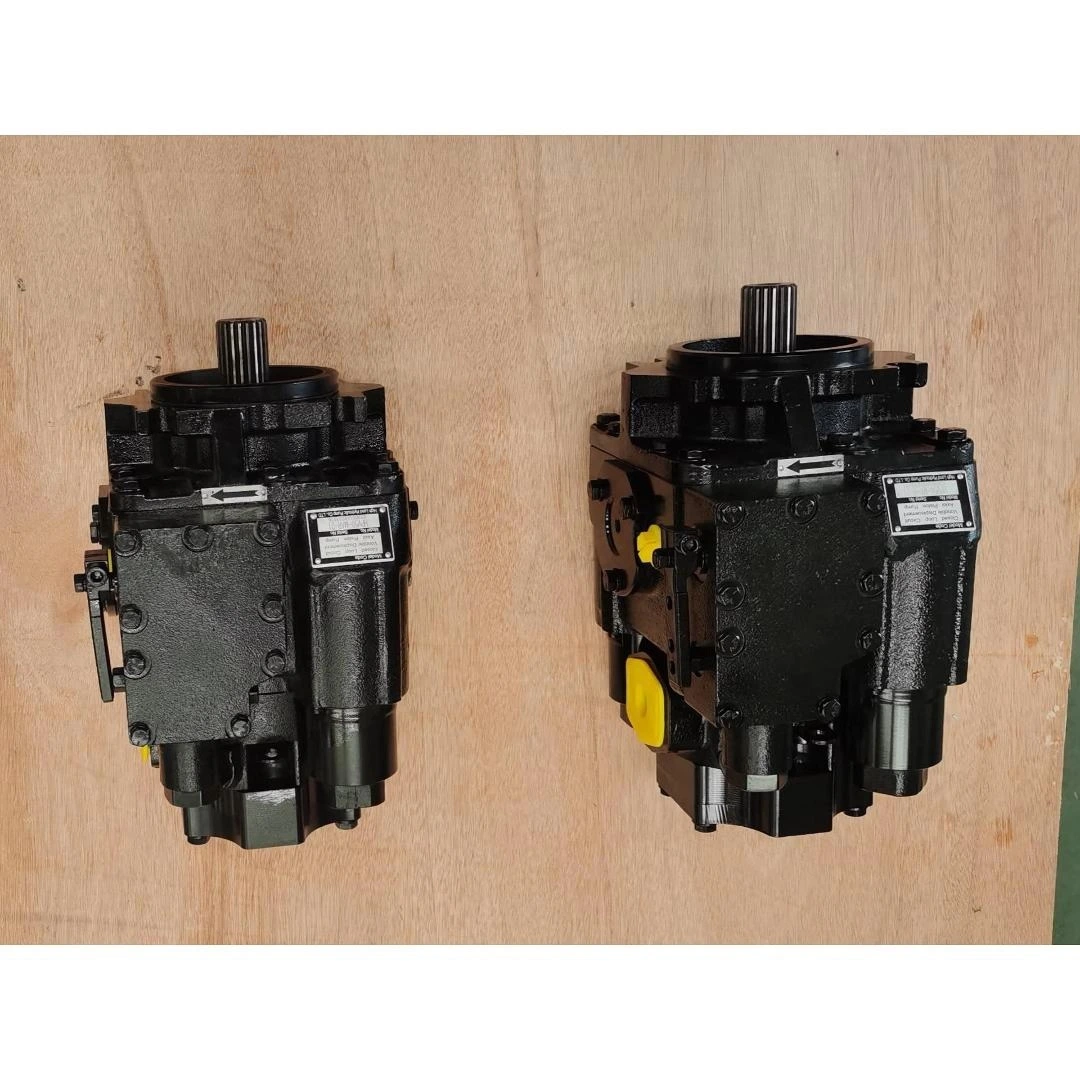

HPV90 Axial Piston Pumps

Mobile Hydraulic Systems

Hydrostatic Transmission Hydraulic Pumps

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of variable piston pump and hydraulic motor, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.
