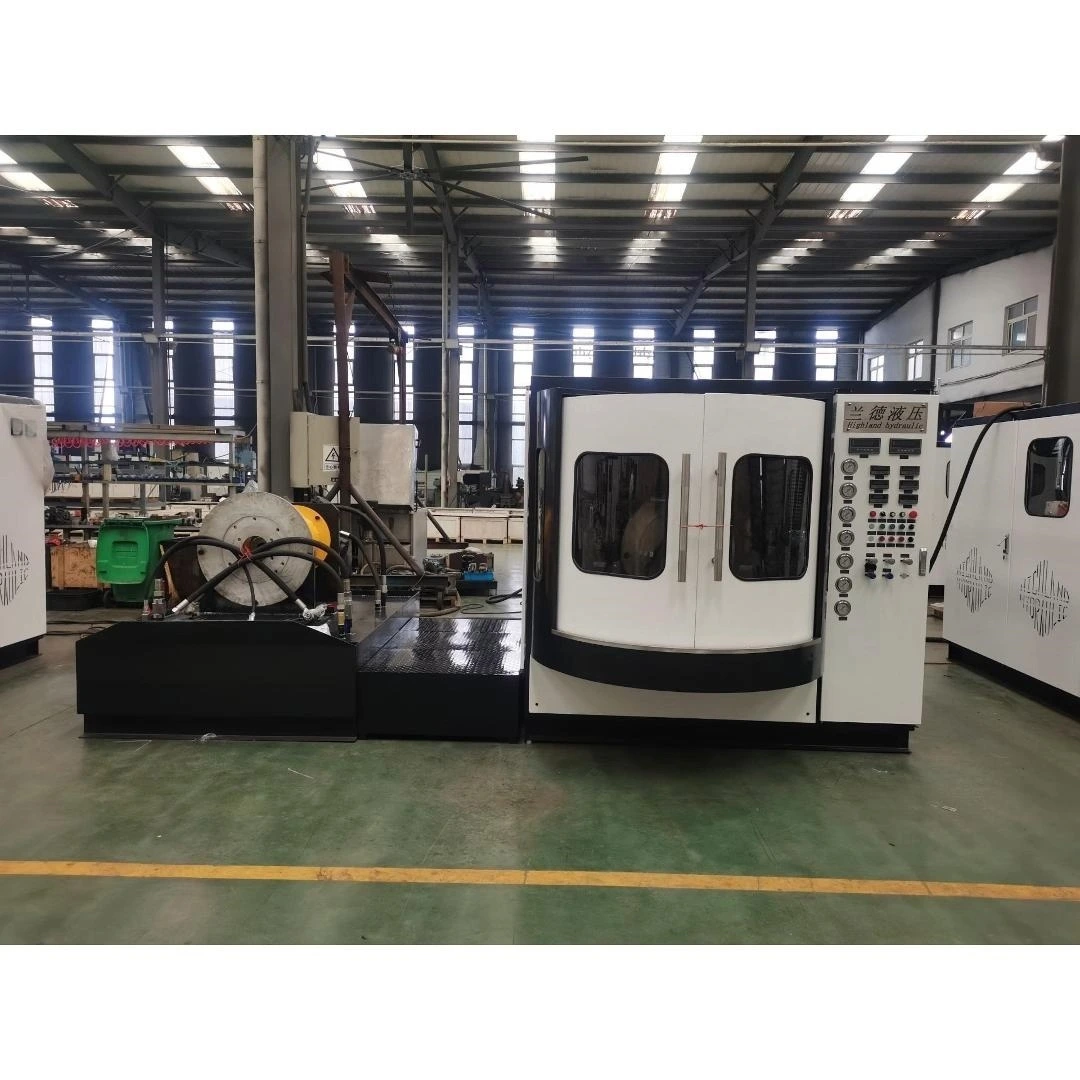

Custom Hydraulic Test Benches Reliable Support for Repair and Production Calibration

Our company specializes in developing and manufacturing customized hydraulic test benches, providing comprehensive solutions for maintenance testing and production calibration of hydraulic systems and components. Featuring modular designs, our products can be tailored to specific requirements including test pressure, flow rate, accuracy and other critical parameters to meet performance testing needs for various hydraulic pumps, valves, cylinders and more.

The test benches are equipped with high-precision sensors, intelligent control systems and data acquisition/analysis software to accurately measure key parameters like pressure, flow and temperature while automatically generating test reports. With robust industrial-grade construction, the equipment maintains stable performance even under prolonged heavy-duty operation, making it the ideal testing solution for hydraulic equipment repair workshops and manufacturing plants.

Inquiry

    oops...!

    no product data.

    Go to homepage
    Write a Review
    Pressure
    42mpa
    Brand
    HIGHLAND
    Flow Rate
    450L/min
    Power
    160KW
    Test Bench Use
    Research and Development
    Test Element
    Closed Pump Test,Low Speed Motor Test
    Power Drive Mode
    Electromotor
    Speed Range
    0-1500r/min
    Working Medium
    Hydraulic Oil
    Warranty
    1 Year

     PRODUCT PERFORMANCE

    1. Professional Customization Service
      Provide personalized solutions according to customer requirements for various hydraulic equipment testing

    2. High-precision Testing Capability
      Equipped with imported sensors and precision control system, testing accuracy up to ±0.5%FS

    3. Multi-functional Integrated Design
      Single unit can perform various tests including pressure, flow and leakage tests

    4. Intelligent Operation Experience
      Features touchscreen control system with preset programs, automatic data recording and report generation

    Custom Hydraulic Test Benches Reliable Support for Repair and Production Calibration 6

    Products Advantages

    Our hydraulic test bench provides accurate and reliable testing for hydraulic components, ensuring optimal performance and safety. It offers customizable pressure settings, fast testing times, and easy operation for increased productivity.

    Custom Hydraulic Test Benches Reliable Support for Repair and Production Calibration 7
    Energy-Saving Options
    Includes test benches with electric or hydraulic energy recovery systems
    Custom Hydraulic Test Benches Reliable Support for Repair and Production Calibration 8
    Power Range
    Available in 75KW, 160KW, 250KW, and 400KW options
    Custom Hydraulic Test Benches Reliable Support for Repair and Production Calibration 9
    High Load Pressure
    Up to 42 MPa, with short-term capability of reaching 50 MPa; max flow exceeds 1000L
    book
    Drive Options
    Choose from variable frequency or servo motor drives, direct engine drive, or engine-hydraulic pump/motor conversion drive

     Product sPECIFCATIONS

    Our experts can help you find the perfect hydraulic testing equipment for your home.

    Pressure35mpa、42mpa
    Flow Rate380L/min 、450L/min、500L/min
    BrandHIGHLAND
    Power75kw、90kw、110kw、160kw、200kw、250kw、315kw
    Test ElementClose pump test, Open pump, Low speed motor, Valve set, Cylinder
    Power Drive ModeElectromotor, Diesel engine drive, Hydraulic mortor, Power recovery
    Speed Range1000r/min、0-1500r/min、0-2500r/min、0-3500r/min
    Display ModeLocale(Withour Computer)、Computer (long-distance)
    Working MediumHydraulic oil
    Oil Tank Cubage1300L、2000L

    Button

    STANDARD TEST BENCH MODELS INCLUDE

    Hydraulic Pump Test Bench

    Hydraulic Motor Test Bench

    Hydraulic Cylinder Test Bench

    Valve Factory Test Bench

    Transmission & Torque Converter Test Bench

    YST450 Hydraulic Test Bench

    ADDITIONAL SHOWCASES

    YST500 Hydraulic Test Bench
    YST500 Hydraulic Test Bench
    HIGHLAND YST380 Hydraulic Test Bench
    HIGHLAND YST380 Hydraulic Test Bench
    HIGHLAND YST450 Hydraulic Universal Test Bench
    HIGHLAND YST450 Hydraulic Universal Test Bench

    All what you need to know about us

    MPV-9
    Custom Hydraulic Test Benches Reliable Support for Repair and Production Calibration 16
    With 22 years of experience
    With over 22 years of experience in the hydraulic industry.
    Custom Hydraulic Test Benches Reliable Support for Repair and Production Calibration 17
    With 22 years of experience
    The factory covers an area of more than 10,000 square meters.
    Custom Hydraulic Test Benches Reliable Support for Repair and Production Calibration 18
    With 22 years of experience
    Direct factory sales ensure high quality, competitive prices, and fast delivery.
    Custom Hydraulic Test Benches Reliable Support for Repair and Production Calibration 19
    With 22 years of experience
    Our solutions have been adopted by over 1000 clients worldwide, spanning diverse industrial sectors.

    PRODUCT DISPLAYZoom in For Better Detail

    HIGHLAND YST400 Hydraulic Universal Test Bench
    HIGHLAND YST400 Hydraulic Universal Test Bench
    HIGHLAND YST380 Hydraulic Universal Test Bench
    HIGHLAND YST380 Hydraulic Universal Test Bench
    YST500 Closed pump test bench testing
    YST500 Closed pump test bench testing
    Power recovery hydraulic test bench
    Power recovery hydraulic test bench
    YST380 Power recovery hydraulic test bench
    YST380 Power recovery hydraulic test bench

    Product SPECIFICATIONS

    Our experts can help you find the perfect hydraulic testing equipment for your home.

    Hydraulic Cylinder Test Bench YST300
    YST380 Hydraulic Test Bench

    FAQ

    1
    Are you a manufacturer or Trader ?
    We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.
    2
    What is the main purpose of a hydraulic test bench?
    It is used for performance testing, fault diagnosis, endurance tests, and post-repair validation of hydraulic components (e.g., pumps, valves, cylinders) to ensure compliance with industry standards.
    3
    What are the main functions of a hydraulic test bench?
    It tests and repairs hydraulic pumps, motors, valves, cylinders, etc., measuring parameters like pressure, flow rate, and leakage.
    4
    Which industries are your products suitable for?
    Widely used in construction machinery, aerospace, marine, energy (wind power/hydraulic supports), and defense industries.
    5
    How long is your delivery time?
    Generally it is 30-60 work days
    6
    What is your terms of payment?
    40% T/T in advance, balance before shipment.
    7
    What is the standard of package?
    Plastic Film Packaging

    PRODUCT APPLICATIONS


    Excavator
    Excavator
    Combine harvester
    Combine harvester
    Underground loader
    Underground loader
    Underground loader 8
    Underground loader
    Underground loader 15
    Underground loader
    Cotton picking machinery 2
    Cotton picking machinery
