Closed loop hydraulic pump/hydraulic motor manufacturer & hydraulic solutions provider - Highland Hydraulic

Custom Hydraulic Pump System Manufacturer To Your Specifications

Custom Hydraulic Pump System Manufacturer

Custom Hydraulic Pump System Manufacturer To Your Specifications

1. Fully Customized System Design: Hydraulic pump systems are engineered according to your specific pressure, flow, control, and installation requirements, ensuring precise matching with your equipment and operating conditions.

2. Engineering Support From Concept To Production: Professional technical teams provide support from initial consultation and system design to prototype validation and mass production, reducing development risks and shortening lead times.

3. High-Quality Manufacturing And Testing: Advanced manufacturing processes and strict quality inspection ensure consistent performance, reliability, and durability of every hydraulic pump system delivered.

4. Flexible Pump And Control Options: Systems can be configured with variable or fixed displacement pumps, load-sensing or electronic controls, and compatible valves and motors to meet diverse application needs.

5. Reliable Performance And Long Service Life: Optimized component selection, robust materials, and proven designs minimize wear, reduce maintenance requirements, and ensure stable operation under demanding working conditions.

MOQ:

1 set

Packaging Details:

Plywood case

Delivery Time:

15 DAYS FOR SMALL BATCH, 60 DAYS FOR MORE THAN 100 SETS

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Inquiry

Write a Review

Application

Agricultural Machinery,Walking Machinery

Characteristic

High efficiency,Smoother operation,Simple layout

Function

Hydraulic System Components

Pressure

42mpa

Brand

HIGHLAND

Operation Mode

Closed Circuit Hydraulic System

Working Medium

Hydraulic Oil

Material

Cast Iron

Custom Hydraulic Pump System Manufacturer

To Your Specifications

Highland custom hydraulic pump system manufacturer providing engineered solutions built to your specifications,

delivering reliable performance, efficient operation, and seamless system integration.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Highland custom hydraulic pump systems are designed and manufactured to meet customer specifications. They deliver efficient power transmission, stable performance, and reliable operation for a wide range of industrial and mobile applications.

Product Features

Custom Hydraulic Pump System Manufacturer to Your Specifications focuses on delivering complete, application-specific hydraulic solutions.
Each hydraulic system is designed to meet exact performance, layout, and control requirements, ensuring optimal compatibility with customer equipment.
From hydraulic pump selection to hydraulic system integration, engineering expertise ensures efficient power transmission, stable pressure control, and long-term reliability.

PRODUCT INTRODUCTION

As a custom hydraulic pump system manufacturer, we Highland hydraulic provide engineered solutions tailored to your requirements. From design and production to testing and support, each system is built for performance, durability, and seamless integration.

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
Torque	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
Power	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

HPV30(50)

PDF

HPV70(90)

PDF

HPV110(130)

PDF

detail displaY

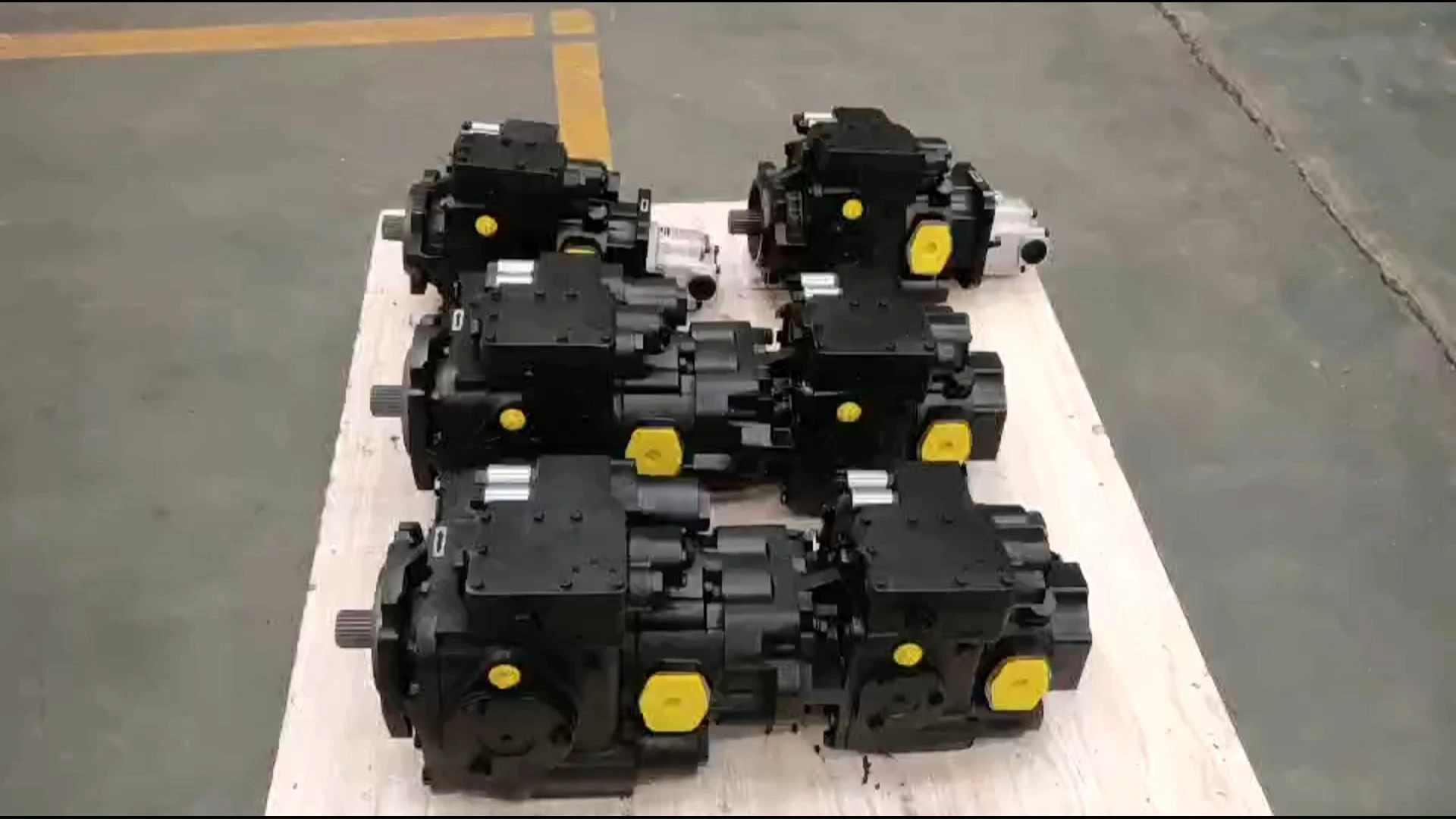

Hydraulic Pump Manufacturer

Hydraulic System Manufacturer

Custom Hydraulic System

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of variable piston pump and hydraulic motor, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Portable hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.

Get in touch with us

just leave your email or phone number in the contact form so we can send you a free quote for our wide range of designs
