Concrete Mixer Truck PV110 Hydraulic Axial Piston Pumps

Concrete Mixer PV110 Hydraulic Axial Piston Pumps

Concrete Mixer Truck PV110 Hydraulic Axial Piston Pumps

Designed for Concrete Mixer Truck Applications: Highland PV110 hydraulic axial piston pumps are specifically engineered to meet the demanding requirements of concrete mixer trucks, providing continuous and stable hydraulic power for drum rotation and auxiliary functions.
High Pressure and Large Displacement Output: Large displacement design delivers strong torque and high pressure capability, ensuring reliable performance during heavy load mixing operations and long working cycles.
Stable Flow for Smooth Mixing Performance: Precision axial piston technology ensures consistent flow output, helping maintain smooth drum rotation and uniform concrete mixing under variable operating conditions.
Durable Construction for Continuous Duty: Manufactured with high-strength materials, advanced heat treatment, and robust sealing systems, PV110 pumps offer long service life under vibration, dust, and continuous operation.
OEM-Friendly Integration and Compatibility: Multiple control options, mounting interfaces, and configuration choices allow easy integration into concrete mixer truck hydraulic systems for OEMs and system integrators.

MOQ:

1 set

Packaging Details:

Plywood case

Delivery Time:

15 DAYS FOR SMALL BATCH, 60 DAYS FOR MORE THAN 100 SETS

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Inquiry

Write a Review

Application

Agricultural Machinery,Walking Machinery

Characteristic

High efficiency,Smoother operation,Simple layout

Function

Hydraulic System Components

Pressure

42mpa

Brand

HIGHLAND

Operation Mode

Closed Circuit Hydraulic System

Working Medium

Hydraulic Oil

Material

Cast Iron

Concrete Mixer Truck PV110 Hydraulic Axial Piston Pumps

Highland Concrete mixer trucks require hydraulic systems capable of delivering continuous power, stable flow,

and reliable performance under heavy-duty operating conditions.

Closed Loop Hydraulic Pump Motor System.jpg

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Highland PV110 hydraulic axial piston pumps provide stable flow and high pressure performance for concrete mixer trucks. Designed for continuous duty, they ensure smooth mixing operation, reliable output, and long service life.

Product Features

With advanced axial piston technology and precision manufacturing, Highland PV110 axial piston pump offers high volumetric efficiency, smooth flow control, and excellent pressure stability.
Its robust structure and durable sealing system enable long service life in harsh environments involving vibration, dust, and extended duty cycles.
Flexible configuration options and OEM-oriented design make the PV110 hydraulic pump an ideal solution for concrete mixer truck manufacturers and hydraulic system suppliers.

PRODUCT INTRODUCTION

Highland Hydraulic supply PV110 hydraulic axial piston pumps specifically developed for concrete mixer truck applications. Combining high pressure capability, stable flow output, and durable construction, Highland axial piston pumps deliver reliable hydraulic power for heavy-duty mobile mixing systems.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
Rated displacement	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
Torque	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
Power	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Button

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

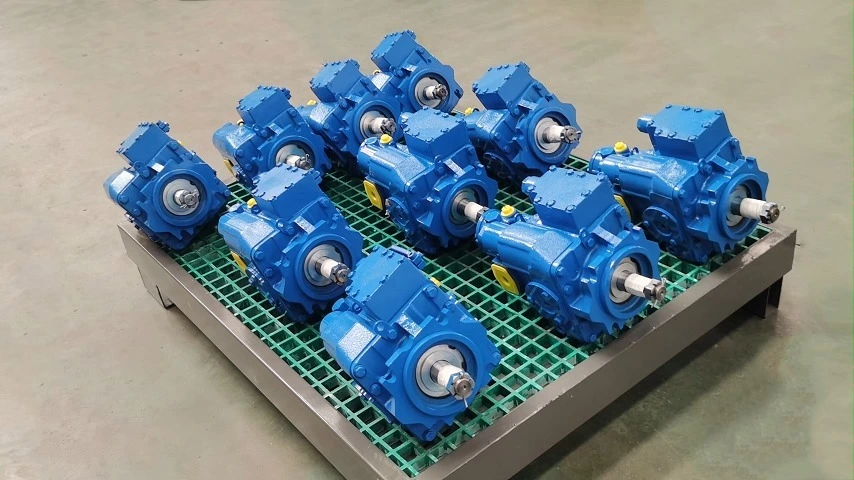

PV110 Hydraulic Pumps

Concrete Mixer Piston Pumps

Hydraulic Axial Piston Pumps

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of variable piston pump and hydraulic motor, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Portable hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.
