Combine Harvester Axial Piston Pumps Wholesale Manufacturer

Combine Harvester Axial Piston Pumps Manufacturer

Combine Harvester Piston Pumps Manufacturer

Combine Harvester Axial Piston Pumps Wholesale Manufacturer

High Efficiency Design: Provides superior energy conversion and hydraulic power, reducing fuel consumption and improving combine harvester performance.
Durable Construction: Built with wear-resistant materials to withstand harsh agricultural environments and long operating hours.
Variable Displacement Control: Allows flexible adjustment of hydraulic output to meet varying load requirements during harvesting operations.
Compact and Easy Installation: Space-saving design ensures easy integration into combine harvester hydraulic systems.
Stable Closed Circuit Operation: Delivers smooth hydraulic power transmission with minimal downtime.

MOQ:

1 set

Packaging Details:

Plywood case

Delivery Time:

15 DAYS FOR SMALL BATCH, 60 DAYS FOR MORE THAN 100 SETS

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Inquiry

Write a Review

Application

Agricultural Machinery,Walking Machinery

Characteristic

High efficiency,Smoother operation,Simple layout

Function

Hydraulic System Components

Pressure

42mpa

Brand

HIGHLAND

Operation Mode

Closed Circuit Hydraulic System

Working Medium

Hydraulic Oil

Material

Cast Iron

Combine Harvester Axial Piston Pumps Wholesale Manufacturer

Highland wholesale manufacturer of axial piston pumps for combine harvesters,

delivering reliable, efficient, and durable hydraulic solutions for agricultural machinery.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Highland axial piston pumps designed for combine harvesters, available from a trusted wholesale manufacturer. Featuring variable displacement, high efficiency, and durable construction, these pumps ensure reliable hydraulic performance for agricultural machinery.

Product Features

Highland axial piston pumps for combine harvesters are engineered to provide farmers and agricultural machinery manufacturers with reliable, high-performance hydraulic solutions.
Highland hydraulic manufacturer specialize in delivering pumps that meet the demands of modern harvesting operations, offering variable displacement control, high pressure resistance, and compact designs.
Highland axial piston pumps ensure smooth power transmission, reduce fuel consumption, and extend the working life of agricultural equipment.

Product INTRODUCTION

Highland hydraulic As a wholesale manufacturer of axial piston pumps for combine harvesters, we provide high-quality hydraulic solutions tailored to agricultural machinery needs. Our pumps deliver efficiency, durability, and stable closed circuit performance, making them ideal for OEMs and global distributors.

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
Torque	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
Power	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

HPV30(50)

PDF

HPV70(90)

PDF

HPV110(130)

PDF

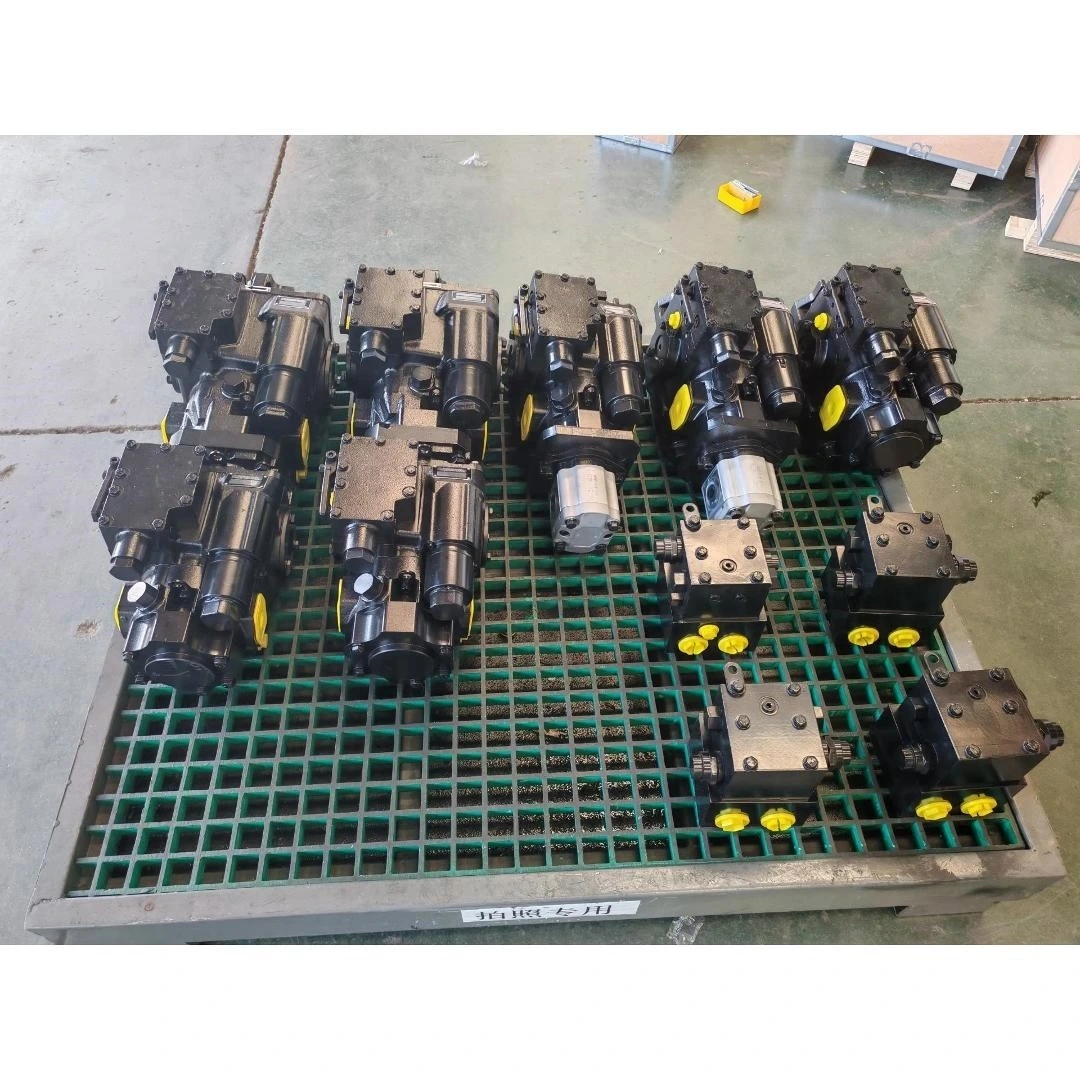

detail displaY

Axial Piston Pumps

Piston Pumps Wholesale Manufacturer

Combine Harvester Hydraulic Pumps

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of variable piston pump and hydraulic motor, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.
