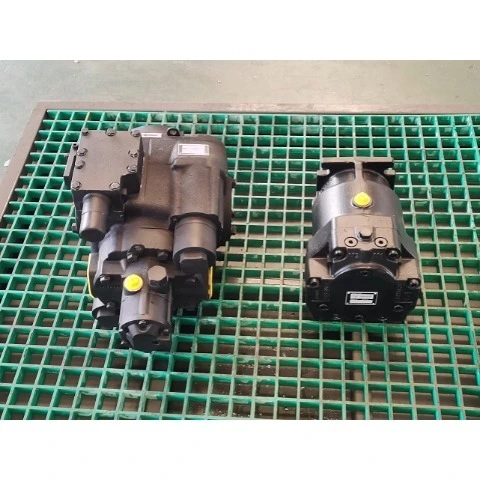

Axial Piston Pump Motor Manufacturer For Mobile Hydraulic System

Axial Piston Pump Motor Manufacturer For Mobile Construction Machines

Axial Piston Pump Motor Manufacturer For Mobile Construction Machines

High Power Density: Axial piston pumps and motors deliver strong pressure and torque in a compact design, making them ideal for space-limited mobile construction machinery.
Stable & Efficient Performance: Precision piston design ensures smooth flow, accurate pressure control, and high volumetric efficiency under varying load conditions.
Heavy-Duty Durability: Manufactured with high-strength materials and advanced machining processes to withstand vibration, shock, dust, and continuous operation on construction sites.
Wide Machine Compatibility: Suitable for mixer trucks, loaders, rollers, pavers, cranes, and other mobile construction equipment requiring reliable hydraulic power.
OEM Manufacturing Capability: As a professional manufacturer, flexible configurations, mounting options, and technical support are available to meet OEM and system integrator requirements.

MOQ:

1 set

Packaging Details:

Plywood case

Delivery Time:

15 DAYS FOR SMALL BATCH, 60 DAYS FOR MORE THAN 100 SETS

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Inquiry

Write a Review

Application

Agricultural Machinery,Walking Machinery

Characteristic

High efficiency,Smoother operation,Simple layout

Function

Hydraulic System Components

Pressure

42mpa

Brand

HIGHLAND

Operation Mode

Closed Circuit Hydraulic System

Working Medium

Hydraulic Oil

Material

Cast Iron

Axial Piston Pump Motor Manufacturer

For Mobile Construction Machines

Highland axial piston pump and motor manufacturer supplying efficient, durable hydraulic solutions

for mobile construction machines operating under high pressure and heavy loads.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Highland axial piston pumps and motors provide high-pressure, efficient, and durable hydraulic power for mobile construction machines. Designed for heavy-duty operation, they ensure stable performance, strong torque output, and long service life in harsh working environments.

Product Features

Highland PV20 high pressure hydraulic pump is engineered for demanding mobile hydraulic applications requiring consistent and efficient power output.
With its robust axial piston design, Highland hydraulic pump ensures high volumetric efficiency, stable pressure control, and reliable long-term performance.
Manufactured with precision components, it withstands harsh working conditions seen in construction machinery, agricultural equipment, industrial vehicles, and other mobile systems.

PRODUCT INTRODUCTION

Highland hydraulic is a professional manufacturer of axial piston pumps and motors for mobile construction machinery. Engineered for efficiency, durability, and reliability, our hydraulic solutions support demanding applications in earthmoving, road construction, and heavy equipment operations.

PRODUCT SPECIFICATIONS

OEM Hydraulic Systems Rated displacement			30	50	70	90	110	130
OEM Hydraulic Systems Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
Torque	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
Power	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

HPV30(50)

PDF

HPV70(90)

PDF

HPV110(130)

PDF

detail displaY

Axial Piston Pumps Manufacturer

Axial Piston Motors Manufacturer

Mobile Hydraulic System

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of variable piston pump and hydraulic motor, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Portable hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.
