Axial Hydraulic Pumps On Agricultural Machinery

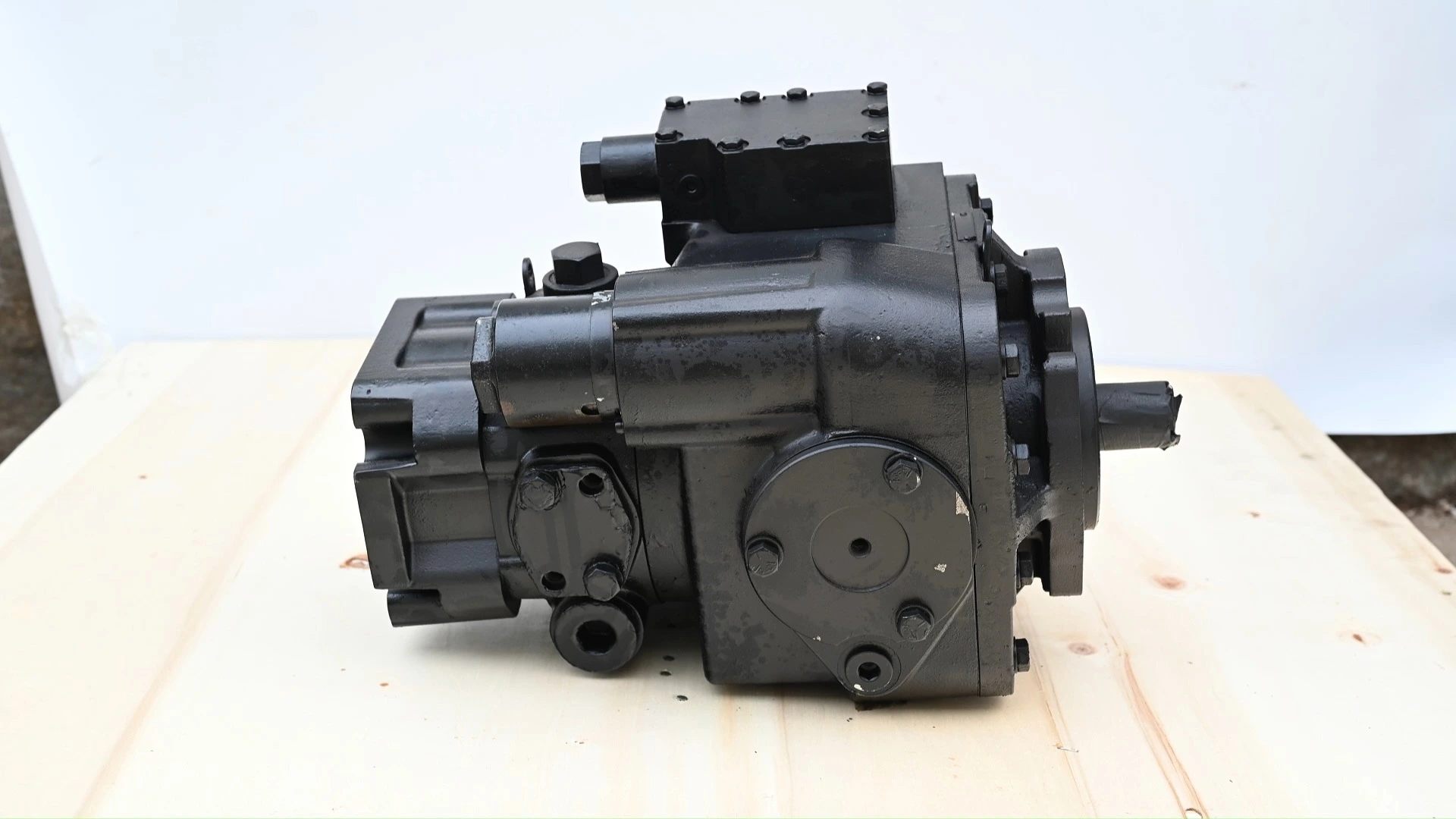

Axial Hydraulic Pumps Mounted On Mobile Agricultural Machinery

1. Compact Design For Mobile Machinery Integration: Axial hydraulic pumps feature a compact and lightweight structure, making them ideal for installation on mobile agricultural machinery where space, weight, and layout flexibility are critical.

2. High Power Density And Stable Output: These pumps deliver high pressure and flow within a compact footprint, ensuring stable hydraulic power for driving steering, lifting, transmission, and auxiliary functions on mobile farm equipment.

3. Efficient Operation Across Variable Conditions: Designed to operate efficiently over a wide range of speeds and loads, axial pumps maintain consistent performance during changing field conditions and fluctuating machine workloads.

4. Durable Construction For Harsh Agricultural Environments: Robust materials, precision machining, and advanced sealing systems enable reliable operation under dust, vibration, temperature variation, and continuous outdoor use.

5. Easy System Integration And Serviceability: Standardized mounting interfaces and flexible port configurations simplify installation and maintenance, helping equipment manufacturers reduce downtime and improve overall machine reliability.

MOQ:

1 set

Packaging Details:

Plywood case

Delivery Time:

15 DAYS FOR SMALL BATCH, 60 DAYS FOR MORE THAN 100 SETS

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Inquiry

Write a Review

Application

Agricultural Machinery,Walking Machinery

Characteristic

High efficiency,Smoother operation,Simple layout

Function

Hydraulic System Components

Pressure

42mpa

Brand

HIGHLAND

Operation Mode

Closed Circuit Hydraulic System

Working Medium

Hydraulic Oil

Material

Cast Iron

Axial Hydraulic Pumps Mounted On Mobile Agricultural Machinery

Highland Axial hydraulic pumps mounted on mobile agricultural machinery provide compact, efficient,

and reliable hydraulic power for modern farm equipment operating in demanding field environments.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Highland axial hydraulic pumps deliver efficient and stable hydraulic power for mobile agricultural machinery. Their compact design, high power density, and durable construction support reliable operation under varying loads and harsh field conditions.

Product Features

Highland Axial Hydraulic Pumps Mounted on Mobile Agricultural Machinery are engineered to meet the performance and reliability demands of modern farming equipment.
Highland axial piston pumps provide high power density, precise flow control, and stable pressure output within a compact design suitable for mobile applications.
Capable of operating efficiently under variable speeds, loads, and environmental conditions, axial pumps support critical machine functions such as steering, lifting, propulsion, and auxiliary hydraulics.

PRODUCT INTRODUCTION

Designed for mobile agricultural machinery, axial hydraulic pumps combine compact structure, efficient performance, and long-term durability. They provide reliable hydraulic power for essential machine functions in demanding agricultural applications.

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
Torque	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
Power	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

HPV30(50)

PDF

HPV70(90)

PDF

HPV110(130)

PDF

detail displaY

Axial Hydraulic Pumps

Mobile Agricultural Hydraulics

Agricultural Hydraulic Systems

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of variable piston pump and hydraulic motor, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Portable hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.
